2013 Mercedes G 63 AMG blower motor + regulator replacement (fault code 912F07)

Do this first. You're working inches from the fuse box and unplugging live connectors, including a 12V outlet. Don't skip it to save two minutes.

Fold the cupholder down and out of the way, and run the passenger seat all the way back. You'll be working down in the footwell and you want every inch of room you can get.

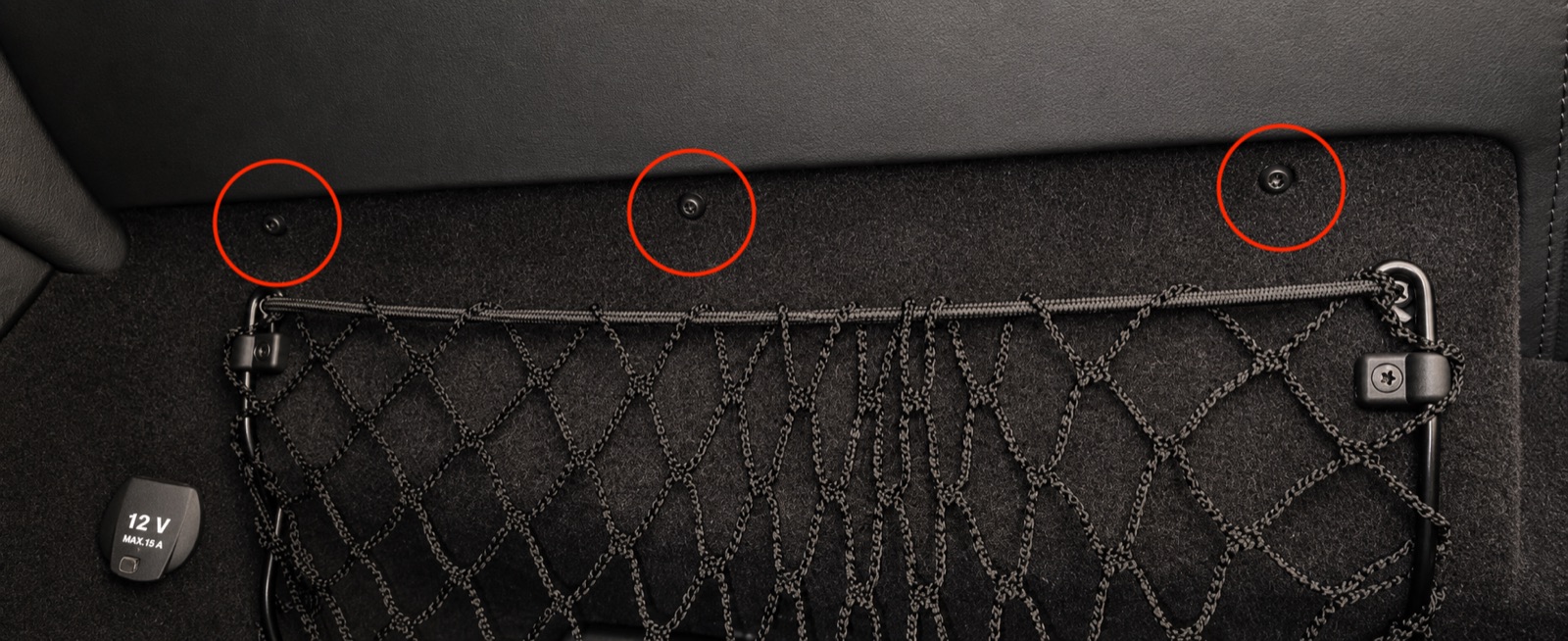

Three T20 screws along the top edge of the trim panel — circled in the photo.

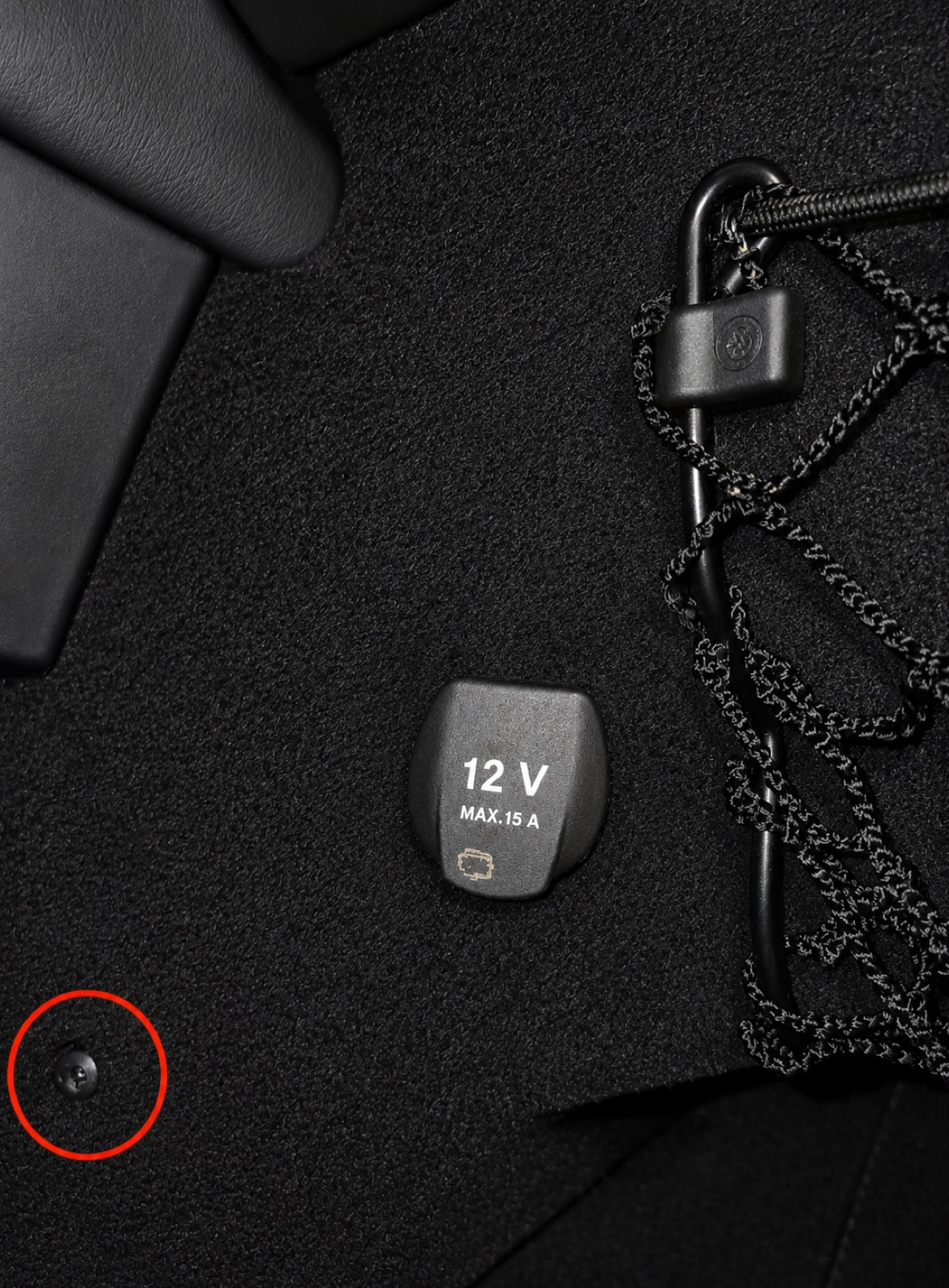

Same T20 bit, bottom-left. This screw is much longer than the top three. Put it somewhere separate so it goes back in the right hole — a long screw in a short hole will do damage.

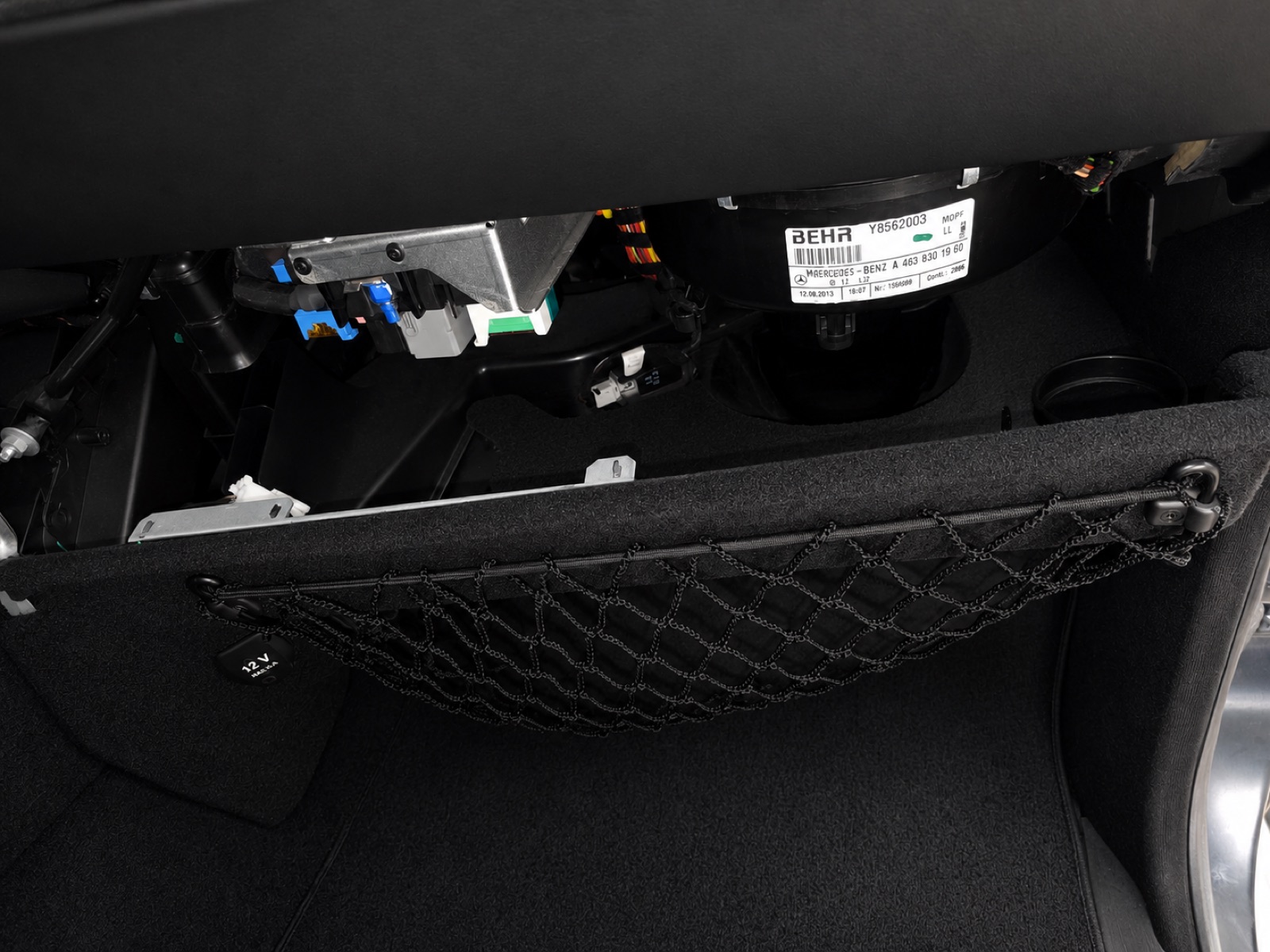

Carefully wiggle the panel down. It doesn't need to come all the way out — you just want enough room to get your hands in and reach the connectors behind it.

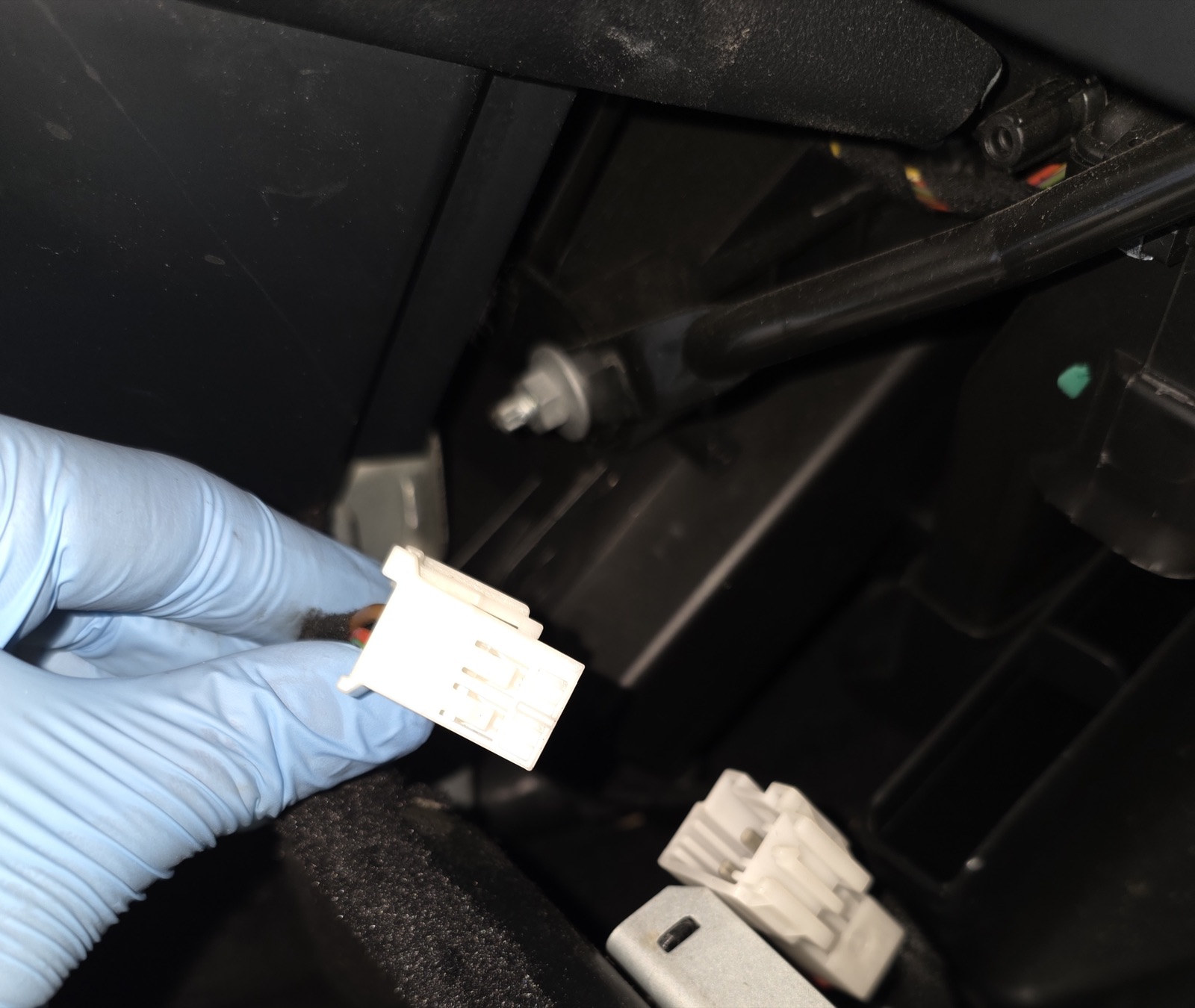

On the left-hand side. Press the white tab in and pull the connector apart.

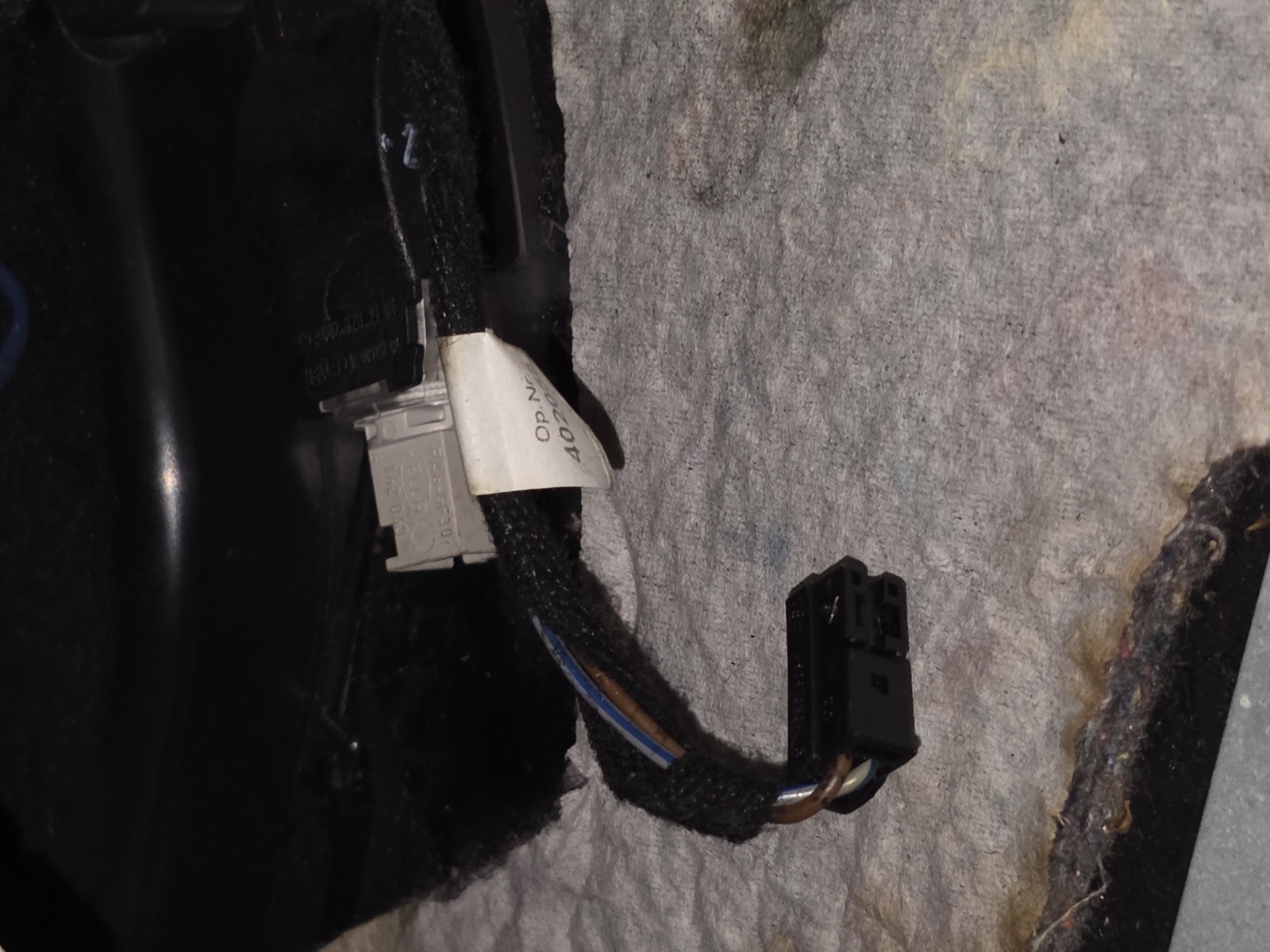

Twist the dome light to the left, then unplug the black connector behind it.

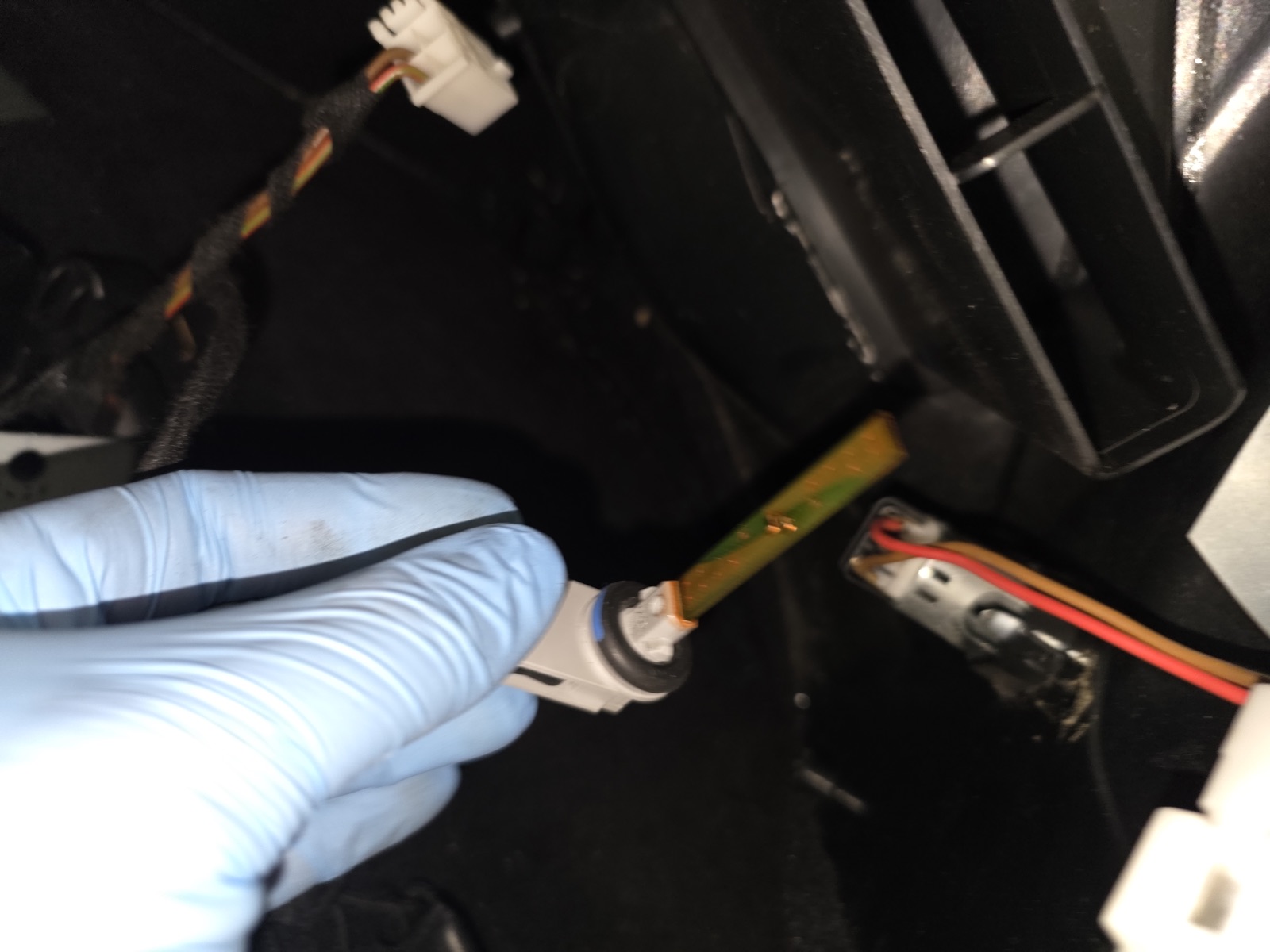

Twist counter-clockwise and pull it straight out. It comes out easily — no tool needed.

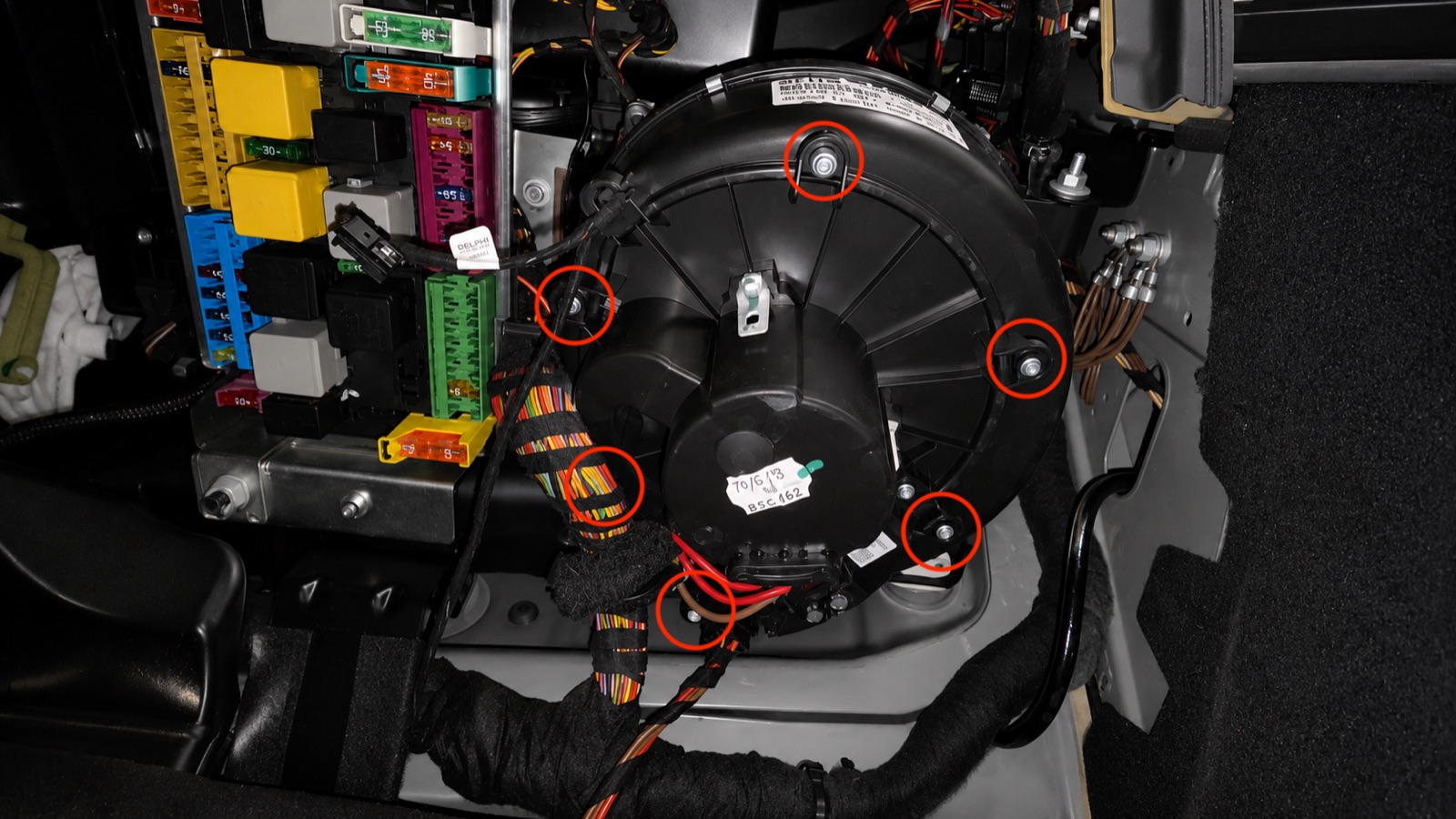

With the panel out of the way the blower motor is right there, held in by six T15 screws (all six circled). Five are straightforward. The sixth is the one that makes this job annoying.

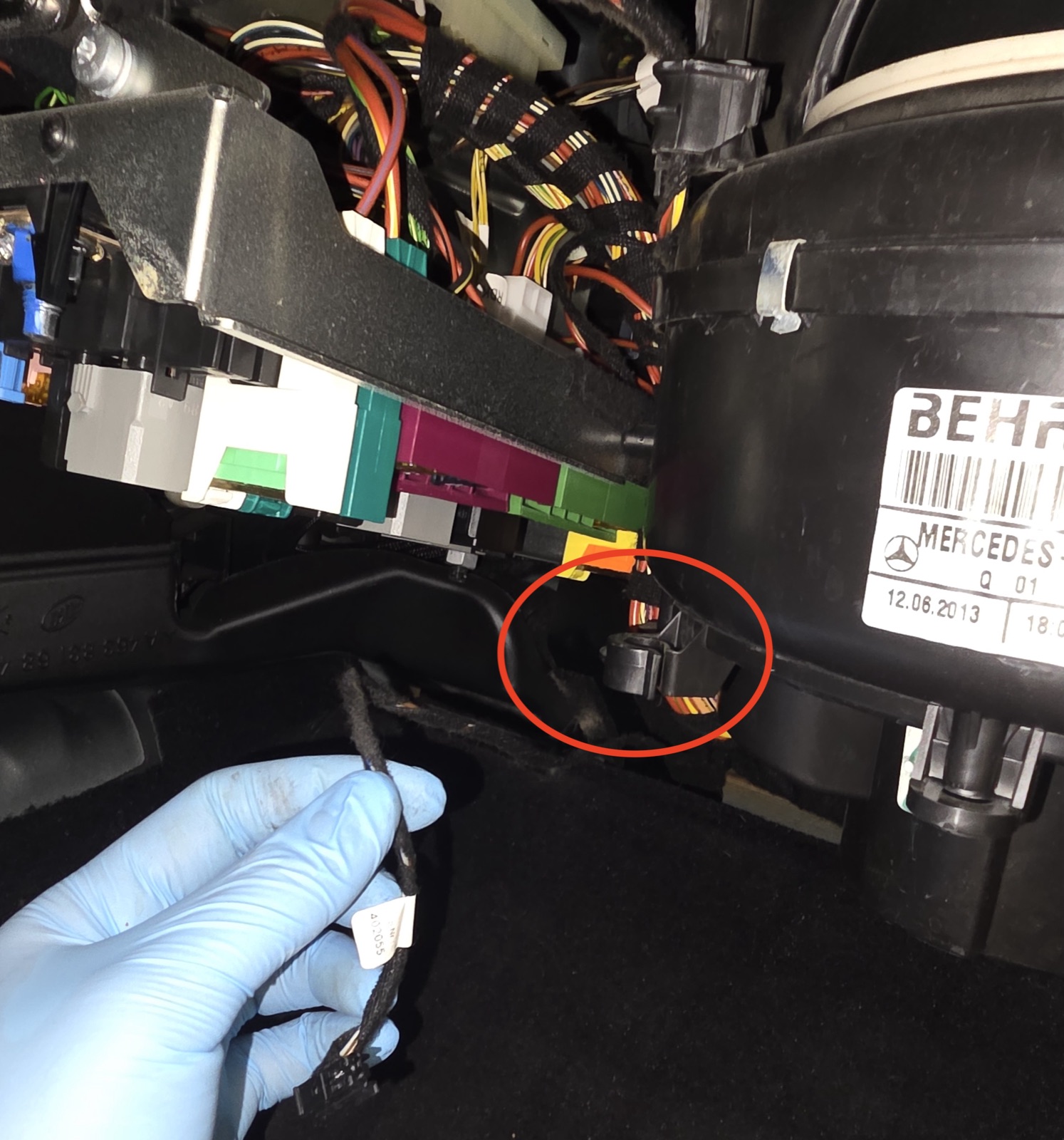

Before you start on the screws, pop the dome light wire out of the plastic bracket holding it to the side. It's in your way otherwise.

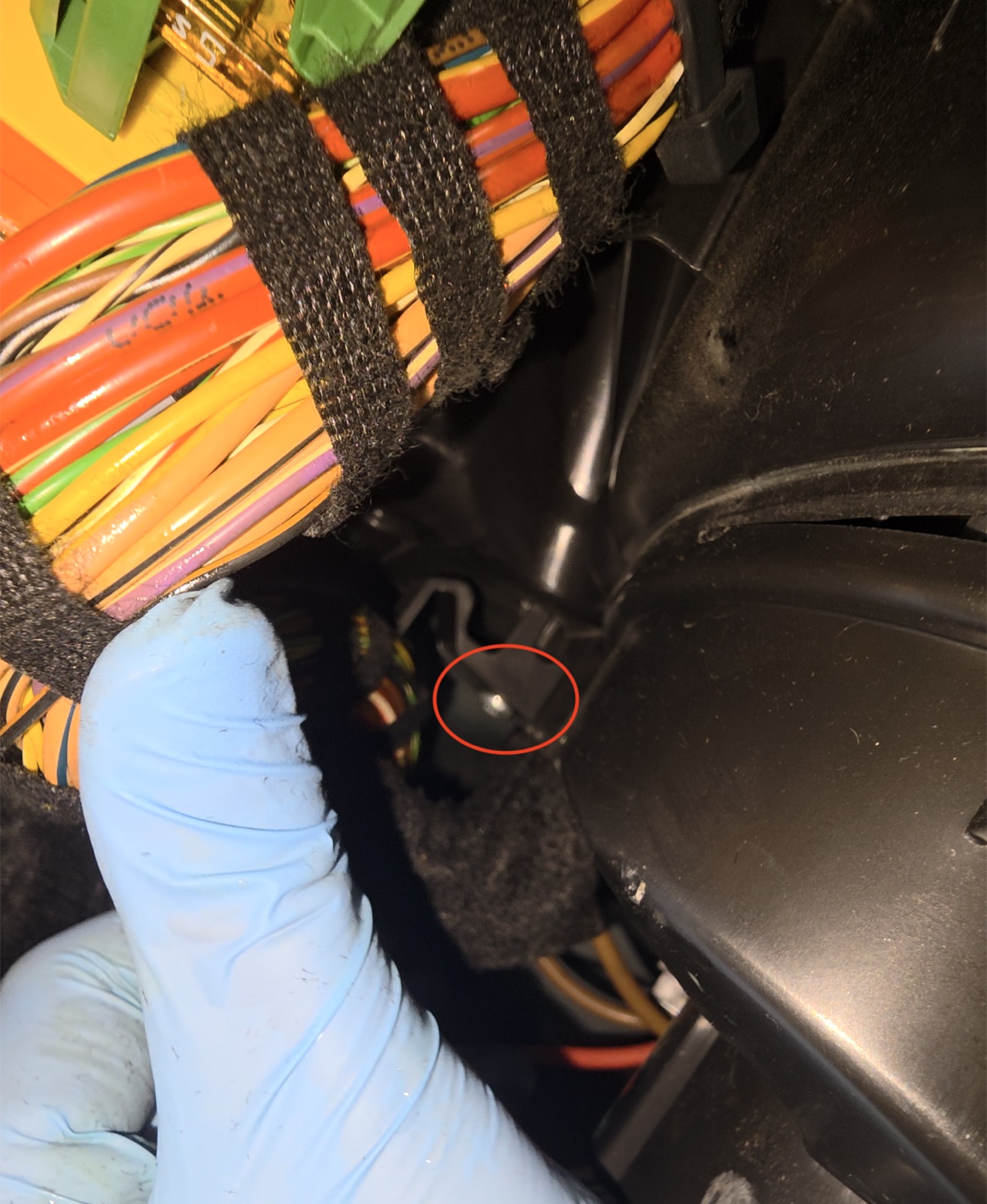

Take out the five accessible screws first. For the last one, push the fuse box wiring gently aside — it moves more than you'd expect — and the screw is suddenly easy to reach.

⚠️ The blower motor is heavy and it will start dropping as that final screw backs out. Get a hand under it and support it while you finish unscrewing, or it lands in the footwell.

Lay the motor down in the passenger footwell. There are two harnesses: one from the motor to the regulator, one from the regulator to the car. Undo both.

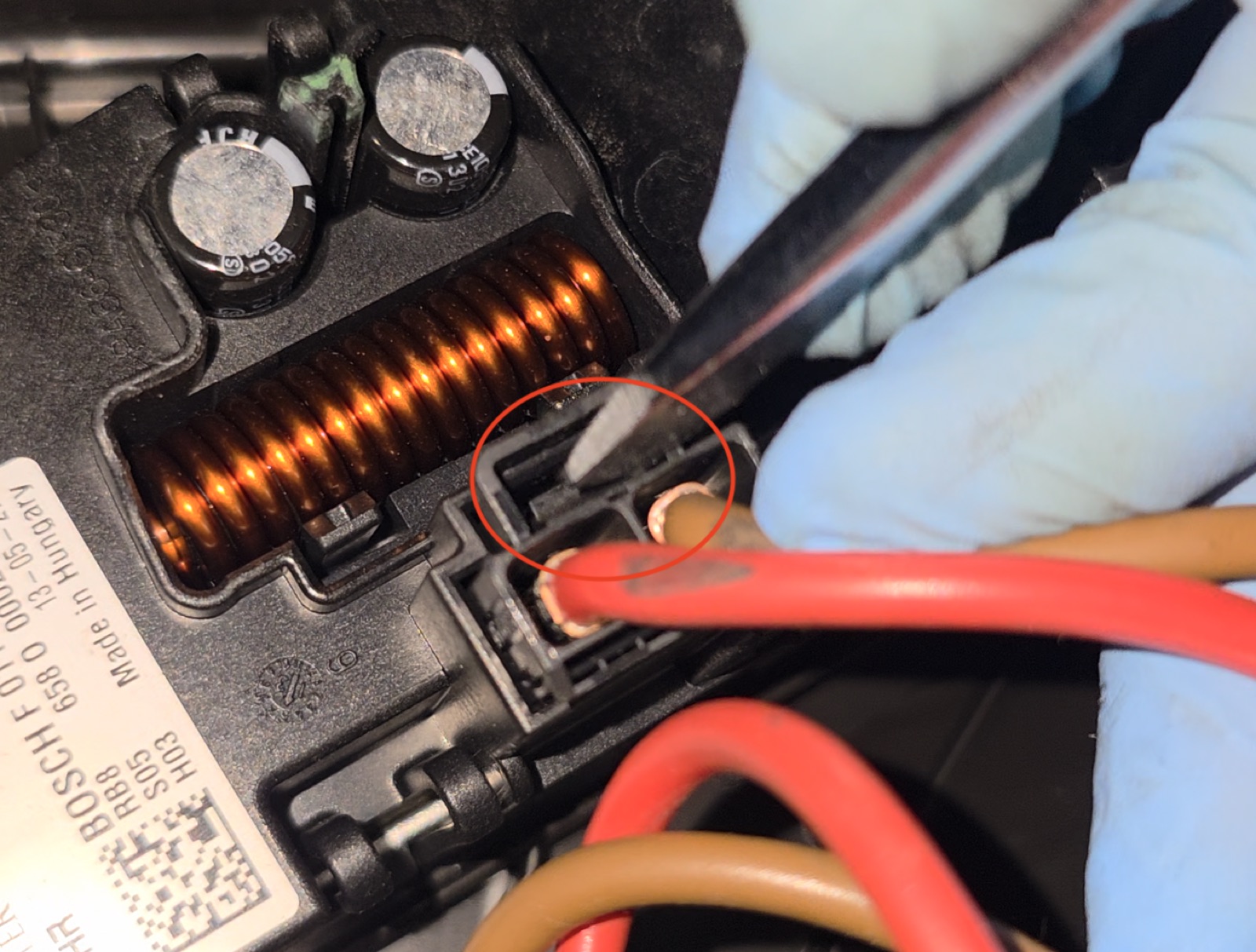

Each has a tiny black clip that has to be pushed down first — a flathead screwdriver does it easily, as shown. Do not force a harness out. If it isn't coming, the clip isn't fully depressed, and pulling harder damages the connector or the wiring behind it.

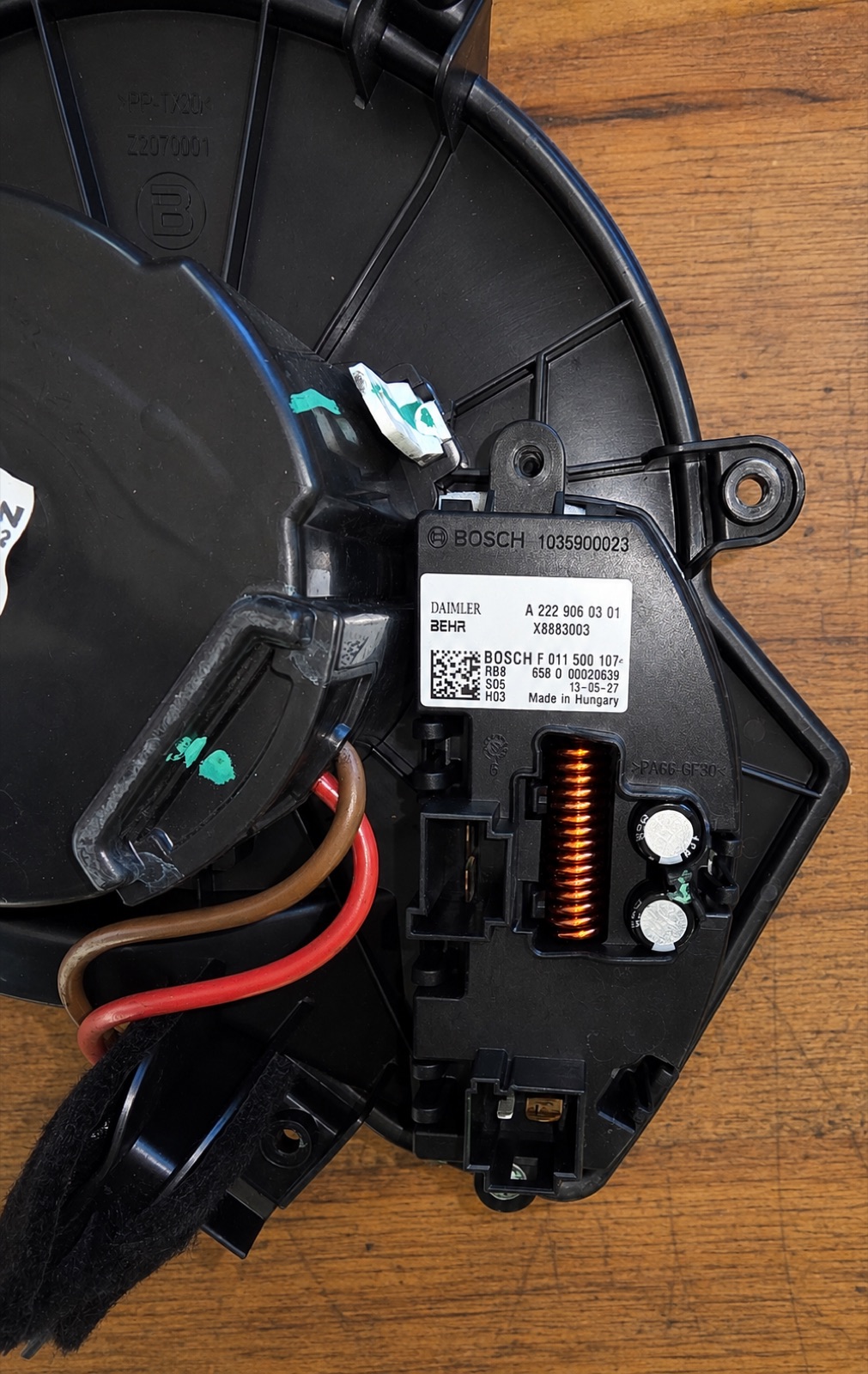

The regulator is the module bolted to the blower motor housing — the one the 912F07 code is pointing at. Replace both while you're in here. The assembly comes out as one piece either way, and you don't want to do this job twice for the sake of one part.

Everything goes back the way it came out. Two things to remember: the long screw belongs in the bottom-left hole, and reconnect the battery last. Then run the fan through every speed before you put the trim back on — much easier to fix a missed connector now than after reassembly.
